COMPREHENSIVE GUIDE TO THE BOSCH RH540M: FEATURES, TROUBLESHOOTING, AND MAINTENANCE

Introduction

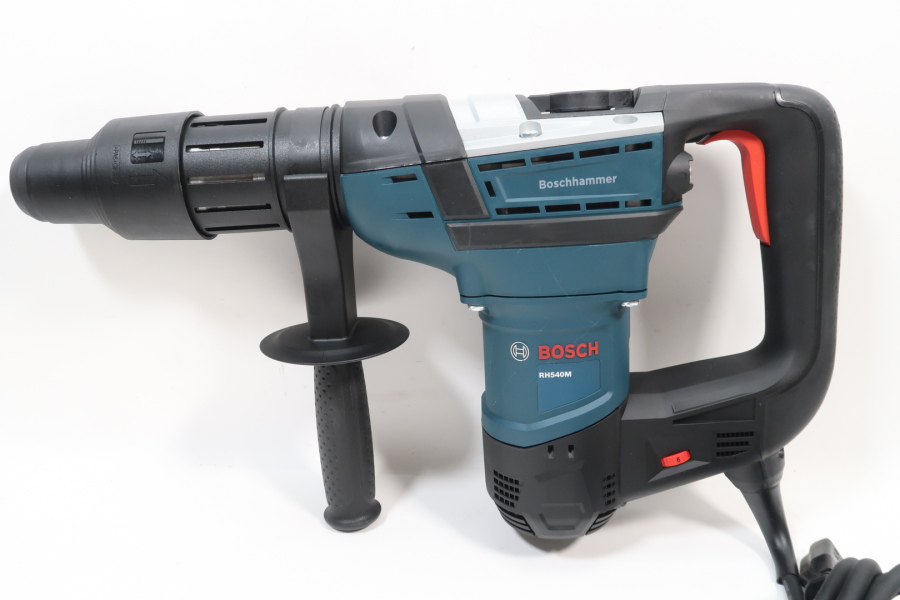

The Bosch RH540M is a versatile rotary hammer designed for both professionals and DIY enthusiasts. Known for its power and durability, it's a go-to tool for drilling and chiseling in various materials. In this guide, we'll cover its key features, common issues, and essential maintenance tips to keep your RH540M running smoothly.

Key Features of the Bosch RH540M

Powerful Motor: Equipped with a robust 8.0 Amp motor, the RH540M delivers 1,500 BPM (blows per minute) and 6.1 ft-lbs of impact energy, making it ideal for heavy-duty applications.
Three Modes of Operation: The tool offers rotary, hammer, and hammer-only modes, providing versatility for different tasks.
Vibration Control: Designed with Bosch's innovative Vibration Control technology, it minimizes user fatigue, allowing for extended use without discomfort.
Durable Design: The RH540M features a sturdy housing and components, ensuring it withstands tough job site conditions.

Troubleshooting Common Issues

Even the best tools can encounter problems. Here are some common issues with the Bosch RH540M and how to troubleshoot them:

1. Tool Won’t Start

Check Power Supply: Ensure the outlet is working and the power cord is intact.
Inspect the Trigger Switch: Look for debris around the trigger; clean if necessary.

2. Inconsistent Performance

Carbon Brushes: Worn brushes can lead to performance issues. Inspect and replace if they are less than 1/4 inch.
Overheating: Allow the tool to cool down if used extensively.

3. Excessive Vibration

Check for Damage: Inspect the tool for any signs of wear or damage that could affect performance.
Maintain Proper Grip: Ensure that you’re using the tool correctly to minimize vibration effects.

Maintenance Tips

Regular maintenance is essential to extend the life of your Bosch RH540M:

Clean the Tool: After each use, wipe down the exterior and check for dust buildup in the vents.
Lubricate Moving Parts: Periodically lubricate the chuck and other moving components as per the user manual.
Store Properly: Keep the tool in a dry, cool place to prevent rust and damage.

Frequently Asked Questions (FAQs)

1. What is the best way to use the RH540M for concrete?

For optimal results, use the hammer mode and a suitable masonry bit. Keep the tool steady and let it do the work.

2. Can I use the RH540M for chiseling?

Yes! Switch to hammer-only mode for effective chiseling in various materials.

3. How do I replace the carbon brushes?

Unscrew the brush caps, remove the old brushes, and replace them with new ones, ensuring proper alignment.

Conclusion

The Bosch RH540M is a powerful and versatile rotary hammer that, with proper care and maintenance, can serve you well for years. By following this guide, you can troubleshoot common issues and ensure your tool remains in top condition.
